NewP3.91 P2.976 Outdoor 3840HZz Rental Stage Background Big Screen LED Video Wall Smd Booth Panel
Model Number: P2.6, P2.97, P3.91,P4.81

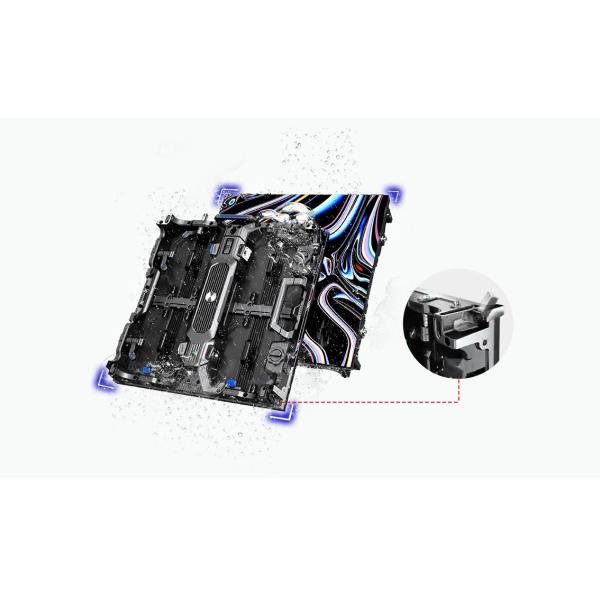

1.Anti-collision design in four corners
Corner protection and anti-collision design around, facilitating transportation and preventing collision with lights

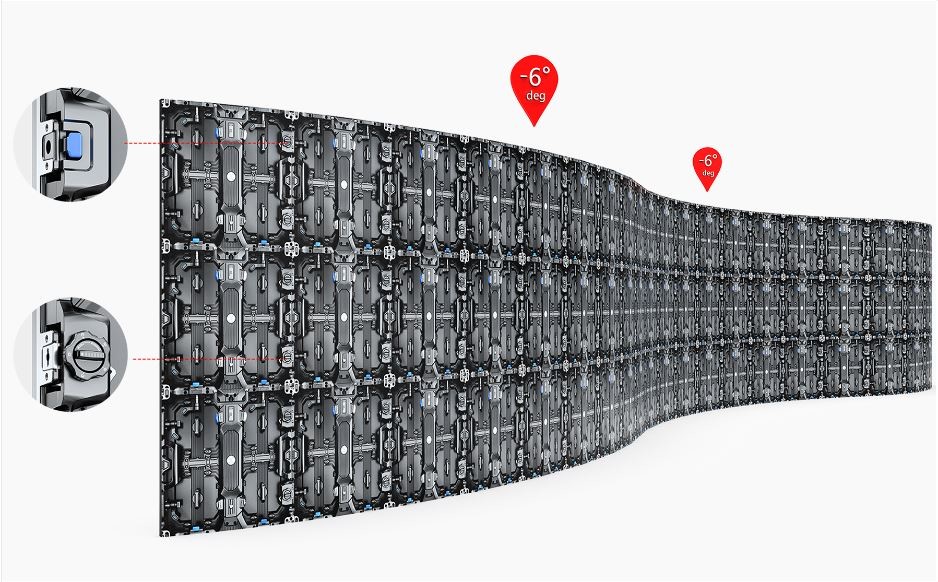

2.Jointable inner and outer arcs
±6° Concave and Convex curve shape
Straight and curved locks are optional
3.2 sizes of cabinet options:
500×500mm and 500×1000mm both size
Two types of cabinet can be freely mixed and matched
4.Precise positioning, convenient maintenance
100% full front service maintenance
The cabinet is equipped with positioning pins and positioning steel ball design for quick positioning and installation
Parameters of Gmars :
| Product | P1.5 | P1.953 | P2.604 | P2.976 | P3.91 |
| Pitch | 1.5625mm | 1.953mm | 2.604mm | 2.976mm | 3.91mm |
| Density(pixels/m²) | 409600 | 262144 | 147456 | 112896 | 65536 |
| LED Type | SMD1212 | SMD1515 | SMD2020 | SMD2020 | SMD2020 |
| Brightness | 800nits | 800nits | 800nits | 800nits | 800nits |
| Scan Method | 1/32 | 1/16 | 1/24 | 1/21 | 1/16 |
| Panel Size | 500×750×78mm/500×1000×78mm |
| Module Size | 250×250mm |
| Panel Material | Die-casting Aluminum |
| Panel Weight | 14kg |
| Protection Level | IP31 |
| Maintenance | Module Front Service &Rear Service |
| Max Power Consumption | 450W/㎡ | 450W/㎡ | 550W/㎡ | 550W/㎡ | 550W/㎡ |
| Average Power Consumption | 150W/㎡ | 150W/㎡ | 180W/㎡ | 180W/㎡ | 180W/㎡ |
| Refresh Rate | 3840Hz |
| Grey Scale | 13-16bit |
| Viewing Angle | H160°,V140° |
| Voltage | AC100~240V(50-60Hz) |
| Working Temperature | -20℃ to 60℃ |
| Working Humidity | 10%-95%RH |
| Color Temperature | 3000-9500K |
| Certifications | CE/ROHS/EMC/TUV/UL/CCC/FCC/ISO |
Why Choose Us?
Shenzhen GCL Electronics CO.,Ltd, founded in 1999 with the registered capital of 10 million dollars, has been a professional manufacturer of LED screen for more than 21 years. GCL is a high-tech enterprise which integrates researching, development,manufacturing, engineering, installation, sales and aftersales services. Headquartered in Shenzhen, China.GCL is staffed with over 300 employees and in our dust free workshop which covers more than 100,000 square feet, there are more than 30 high-speed production machines with high accuracy and more than 10 modern assembly lines. The annual capacity of GCL is over two hundred millions USD and it has been granted with more than ten LED application products-related patents and certifications in compliance with the ISO9001, ISO1400 and ISO18001 standards. Our products have also been certified with multiple standards, including EMC, CE, ROHS, CCC, FCC, ISO. GCL has finished more than 10,000 led screen and led lighting projects all over the world, including the international government projects in 2010 World Cup in South Africa, 2010 Shanghai Expo, 2014 China-Asian Expo, 2015 Milan Expo, etc.
